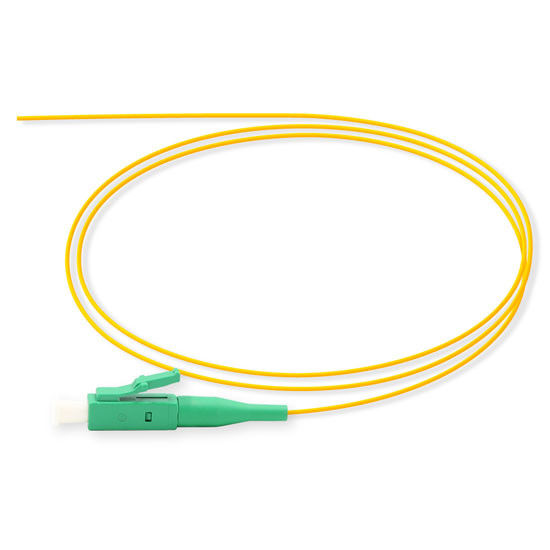

LC APC Singlemode simplex 9 / 125 PVC LSZH Fiber Optic Pigtail

Features

Specifications

Connector Type	SC, LC, FC, ST, MU
Fiber Type	G652D, G657A, OM1, OM2, OM3, OM4
Polish or Ferrule Interface Type	PC, UPC, APC
Jacket Material	PVC or LSZH
Cable Diameter	0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
Jacket Color (Multimode: OM1 & OM2)	Orange
Jacket Color (Multimode: OM3)	Aqua
Jacket Color (Multimode: OM4)	Aqua or Purple
Jacket Color (SingleMode: G652D & Gb57A)	Yellow
Insertion Loss (dB) Max.	≤0.3
Return Loss (dB) Singlemode	PC≥45, UPC≥50, APC≥60
Return Loss (dB) Multimode	PC≥35dB
Note:Other Jacket colors may be available upon request.

Ordering Information

Using the available configurations amend/create product codes using the formula below.
Part Number: PT-AA-BCDE

Ordering Guide

AA	B	C	D	E
connector Type	Fiber Type	Length	Jacket Material	Jacket Color(CL)
FP,SP,SA,LP	OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A	01=1M 02=2M 03=3M 10=10M	1=PVC 2=LSZH	Yellow=YE Orange=OR Aqua=AQ Purple=PU

Ordering Sample

Part Number	Description
PT-SP-OM1-031OR	SC/PC Multimode 62.5/125 Fiber Optic Pigtail, PVC Jacket, Orange, 3M.

LC APC Ftth Fiber Optic Cable Singlemode 9/125 Fiber Optical Pigtail
