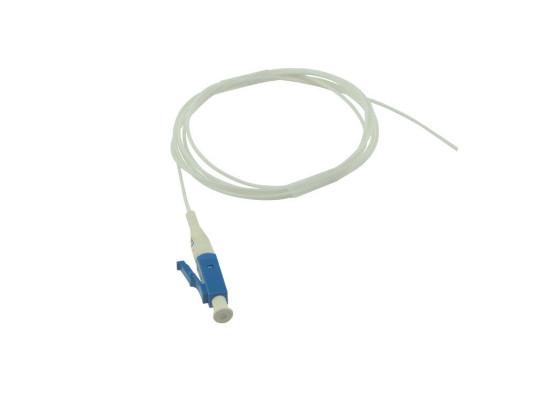

    LC / PC UPC Fiber Optic Pigtail SX 9 / 125um PVC LSZH Cable Customized Length

    Ask Lasest Price
    Brand Name : J&K
    Model Number : LC/UPC SM Pigtail
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 3~5days
    • Product Details
    • Company Profile

    LC / PC UPC Fiber Optic Pigtail SX 9 / 125um PVC LSZH Cable Customized Length

    LC / PC UPC SingleMode SX fiber optic pigtail 9 / 125um PVC LSZH cable


    Features

    • Low insertion loss and high return loss
    • Good repeatability & interchangeability
    • PC, UPC, APC polishing; FC, SC, ST, LC, MU connector

    Applications


    • Optical fiber communications system
    • Optical fiber access networks
    • Optical fiber CATV
    • Optical fiber test equipments
    • Optical fiber data communication

    Specifications

    Fiber count
    12

    Fiber Mode9/125μm
    Connector Type1
    SC/APC
    Connector Type2Unterminated
    Fiber Mode
    SM
    Breakout length0.5m
    Wavelength
    1310/1550nm
    Jacket MaterialPVC/LSZH
    Insertion loss
    ≤0.3dB

    Interchangeability≤0.2dB
    Return loss
    ≥50dB
    Vibration≤0.2dB
    Operating temperature
    -40~75°C

    Storage temperature-45~85°C
    Geometric Specification (only for 3D interferometer tested)


    LC / PC UPC Fiber Optical Pigtail SingleMode SX 9 / 125um PVC LSZH Cable
