12 Core FC / UPC Fiber Optic Pigtail 12 Color Fan Out With LSZH Cable

Product Categories

J&K Optotec Co.,Ltd.

Contact Now

Add to Cart

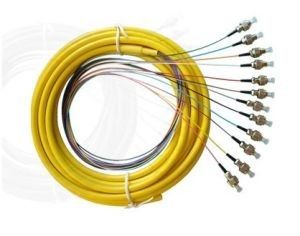

12 core FC / UPC Fiber Optic Singlemode fiber pigtail , 12 color Fan Out Fiber Pigtail with LSZH cable

Features

Applications

Specifications

12 Core Color Bundle Optical Pigtail Characteristic	Item		Test Conditions	Single mode	Multi-mode
Fiber characteristics	Insertion loss	UPC	1.31μm,LED(light source)	≤0.4dB	≤0.3dB
	Insertion loss	APC	1.31μm,LED(light source)	≤0.3dB	≤0.3dB
	Return loss	UPC	1.31μm,LD(light source)	≥55dB
	Return loss	APC	1.31μm,LD(light source)	≥65dB
Mechanical test (additional loss)	Impact test		1.8,8(1.8 height, 8 times)	<0.1dB	<0.1dB
	Vibration test		10~60Hz,1mm(Full amplitude)	<0.1dB	<0.1dB
	Plug life		1000 times or more	<0.1dB	<0.1dB
	tensile strength		≥100N	<0.1dB	<0.1dB
Environmental characteristics (additional loss)	High and low temperature cycling test		-25~+70℃,2(cycle)	<0.2dB	<0.2dB
	High temperature test		+80℃,2(hour)	<0.2dB	<0.2dB
	Low temperature test		-40℃,2(hour)	<0.2dB	<0.2dB
	Damp heat test		+40℃,90~95%RH,2(hours)	<0.2dB	<0.2dB

12 Core FC / UPC Fiber Optic Pigtail 12 Color Fan Out Fiber Pigtail With LSZH Cable
