UPG Max IL 2.5dB 1U Passive Cwdm Multiplexer Rack Mount 8 Channels 20nm Channel Spacing

Product Categories

J&K Optotec Co.,Ltd.

Contact Now

Add to Cart

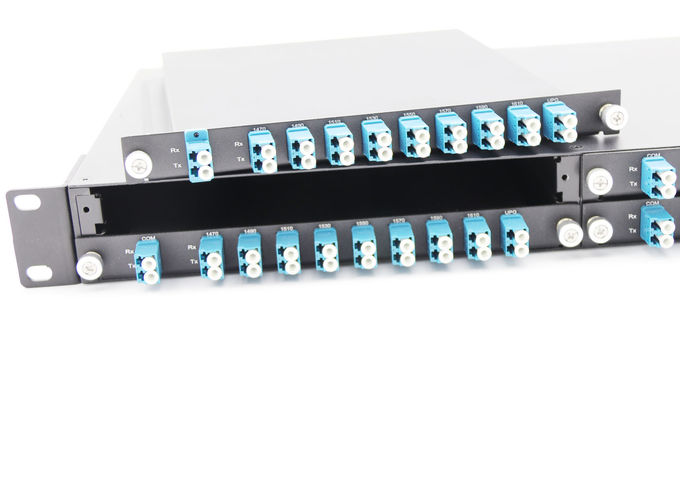

8Ch CWDM LGX With UPG Max IL 2.5dB fix into 1U Rack Mount , Four In One 1U Rack

This CWDM LGX is special design,four this time LGX can fix into 1U Rack.It's channel number is 8,with UPG or Without UPG.

Our Advantage:

●Low insertion loss
●broadband transmission
●high isolation
●High stability and reliability
●epoxy glue

Applications:

1. Metro/Access networks
2. WDM-PON
3. Fiber optical amplifier
4. CATV system

Specifications:

Parameter	Unit	Value
Channel Number	pcs	1xN or 2XN
Passband Central Wavelength	nm	1270~1610 or 1271~1611
Channel Spacing	nm	20
Center Wavelength Accuracy	nm	±0.5
Passband (Bandwidth @ -0.5dB)	dB	±7.5& ±6.5
Insertion Loss Pass Channel	dB	Max≤2.5dB
Insertion Loss Reflect Channel	dB	≤0.3
Isolation Adjacent Channel	dB	≥30
Isolation Non-Adjacent Channel	dB	≥45
Pass band Flatness	dB	0.3
Inertion Loss Temperature Sensitivity	dB/℃	﹤0.005
Wavelength Temperature Shifting	nm/℃	﹤0.002
Polarization Dependent Loss(PDL)	dB	﹤0.1
Polarization Mode Dispersion (PMD)	dB	﹤0.1
Directivity	dB	>50
Return Loss	dB	>45
Fiber Length	m	customized
Fiber Type	um	SMF-28e With 900um Loose or Tight Tube
Rated Power	mW	500
Operating Temperature	℃	-20～+85
Storage Temperature	℃	-40～+85
Package Dimension	mm	LGX

UPG Max IL 2.5dB CWDM Multiplexer Fix Into 1U Rack Mount 8 Channels
