Rack Mount CWDM Mux Demux Four In One Type With UPG Port 1470 - 1610nm Wavelength

Product Categories

J&K Optotec Co.,Ltd.

Contact Now

Add to Cart

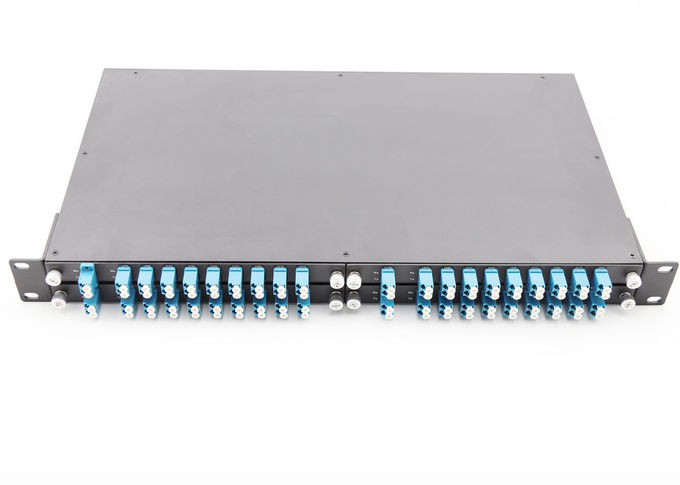

CWDM Rack Mount Four In One Type 1470~1610nm With UPG Port LC/UPC Connectors

This Rack mount is special design for WDM system.It can transmite four wavelength signals (1470~1610nm) over dual fibers bidirectionally.

Applications:

Features:

Specifications:

Parameter		Value
CWDM Channels Number		8
Operation Wavelength (nm)		1470~1610 OR 1471~1611
Center wavelength accuracy (nm)		± 0.5
Channel Spacing (nm)		20
Passband (@-0.5dB bandwidth)(nm)		±7.5 & ±6.5
Insertion Loss(dB)		2.5
Pass band Flatness(dB)		0.3
Isolation(dB)	Adjacent Channel	30
	Non-adjacent Channel	45
Insertion Loss Temperature Sensitivity (dB/°C )		<0.005
Wavelength Temperature Shifting (nm/ °C )		<0.002
PDL (dB)		<0.10
PMD (ps)		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Rated power (mW)		500
Operation Temperature (°C)		-20~ +85
Storage Temperature (°C)		-40 ~ +85
Dimension (mm)		Standard 1U Rack

1470 ~ 1610nm CWDM Multiplexer Rack Mount Four In One Type With UPG Port
