High Reliability Mux Demux Cwdm , 4Ch / 8Ch / 18 Ch CWDM Module With LC Connectors

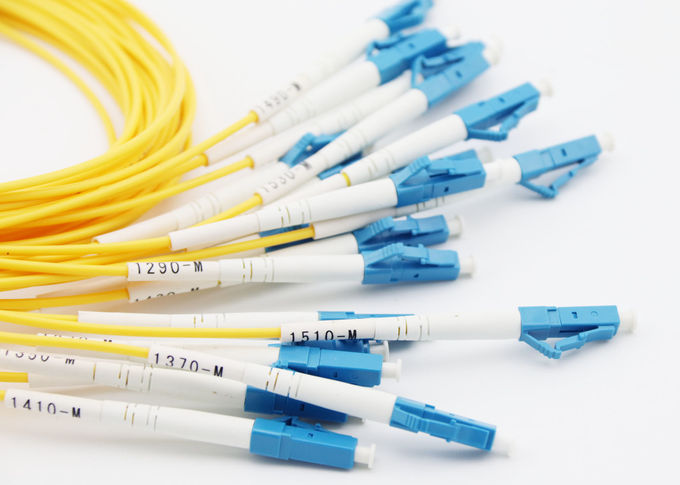

CWDM ABS Box Module With LC Comnnector , 4Ch , 8Ch , 18 Ch available

CWDM ABS BOX Module is usually used into 1U Rack Mount.Usually there are two types,one type is MUX,another type is Demux.There is one special type,MUX/DEMUX in one ABS Box Module.

CWDM ABS BOX Module run 1260~1610 wavelength,there are 18 channels,channel space is 20nm.

Applications:

Metro/Access networks
WDM system
Fiber optical amplifier
CATV system

Features:

Low insertion loss
broadband transmission
high isolation
High stability and reliability
epoxy free in optical patch

Specifications:

Parameter		Value
CWDM Channels Number		4Ch , 8Ch , 10Ch , 16Ch , 18Ch
Operation Wavelength (nm)		1270~1610 OR 1271~1611
Center wavelength accuracy (nm)		± 0.5
Channel Spacing (nm)		20
Passband (@-0.5dB bandwidth)(nm)		±7.5 & ±6.5
Insertion Loss(dB)		1.5	2.5
Pass band Flatness(dB)		0.3
Isolation(dB)	Adjacent Channel	30
	Non-adjacent Channel	45
Insertion Loss Temperature Sensitivity (dB/°C )		<0.005
Wavelength Temperature Shifting (nm/ °C )		<0.002
PDL (dB)		<0.10
PMD (ps)		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Rated power (mW)		500
Operation Temperature (°C)		-20 ~ +85
Storage Temperature (°C)		-40 ~ +85
Dimension (mm)		L100×W80×H10

High Reliability CWDM Multiplexer , 4Ch / 8Ch / 18 Ch CWDM Module With LC Comnnectors
