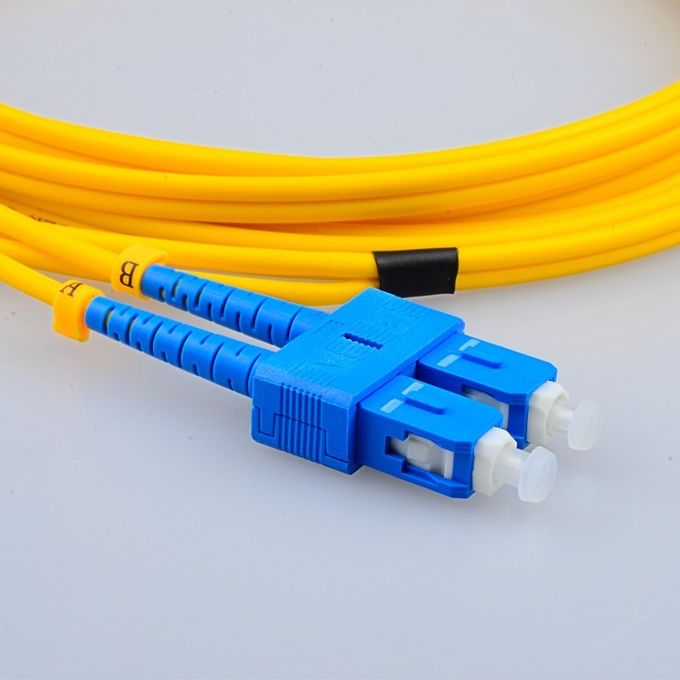

CATV DX SC UPC Fiber Optic Connectors 2.0 / 3.0mm Size Plastic Housing

    Buy cheap CATV DX SC UPC Fiber Optic Connectors 2.0 / 3.0mm Size Plastic Housing from wholesalers

    Buy cheap CATV DX SC UPC Fiber Optic Connectors 2.0 / 3.0mm Size Plastic Housing from wholesalers
    • Buy cheap CATV DX SC UPC Fiber Optic Connectors 2.0 / 3.0mm Size Plastic Housing from wholesalers

    CATV DX SC UPC Fiber Optic Connectors 2.0 / 3.0mm Size Plastic Housing

    Ask Lasest Price
    Brand Name : J&K
    Model Number : SC / UPC SM DX Connector
    Certification : IS09001-2008.ROHS
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 3~5days
    • Product Details
    • Company Profile

    CATV DX SC UPC Fiber Optic Connectors 2.0 / 3.0mm Size Plastic Housing

    SC / UPC Singlemode DX 2.0 / 3.0mm Fiber Optic cable Connector


    Applications

    • Fiber Optic Telecommunications

    • FTTH (Fiber To The Home)

    • CATV & CCTV

    • Data Processing Networks

    • Telecom Equipment

    • Local Area Networks


    Specifications


    ITEMPARAMETER
    Applicative Connector TypeSC,LC,FC,ST,MU,D4,DIN
    Fiber modeSingle modeMulti-mode
    Test wavelength1310nm, 1550nm850nm, 1300nm
    Insertion Losstypical≤0.20dB,Max≤0.30dBtypical≤0.15dB,Max≤0.25dB
    Return LossUPC≥50.0dB,APC≥60.0dB≥35.0dB
    Durability≤0.20dB typical change,1000 mating
    Applicative cable OD.∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm (MU only ∮0.9mm/∮2.0mm)
    Connector Ferrule OD.∮2.5mm:SC, FC,ST,DIN; ∮2.0mm:D4; ∮1.25mm:LC,MU
    Angle BOOTSC,LC(45 or 90 degree)
    Operating Temperature-20ºC to +70ºC
    Storage Temperature- 40ºC to +85ºC
    Ferrule Specification125.3+1/-0μm, Concentricity: ≤1.0μm127+3/-0μm, Concentricity: ≤3.0μm

    ORDERING OPTIONS


    Housing ColorFerrule I.D.Boot SizeBoot TypeBoot ColorDust Cap Type
    Beige125.0μm0.9mmslottedBeigeFerrule cap
    Blue125.5μm2.0mmsmoothBlack
    Brown126.0μmBlue
    Red127.0μmGreen
    YellowYellow

    DX Sc Upc Connector 2.0 / 3.0mm / Fiber Optic Cable Connector Plastic Housing
