    Yellow Boot Fast Connect Fiber Connectors , ST / UPC 2.0mm Duplex Sc Fiber Optic Connector

    Ask Lasest Price
    Brand Name : J&K
    Model Number : ST/UPC Connector
    Certification : IS09001-2008.ROHS
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 3~5days
    • Product Details
    • Company Profile

    Yellow Boot Fast Connect Fiber Connectors , ST / UPC 2.0mm Duplex Sc Fiber Optic Connector

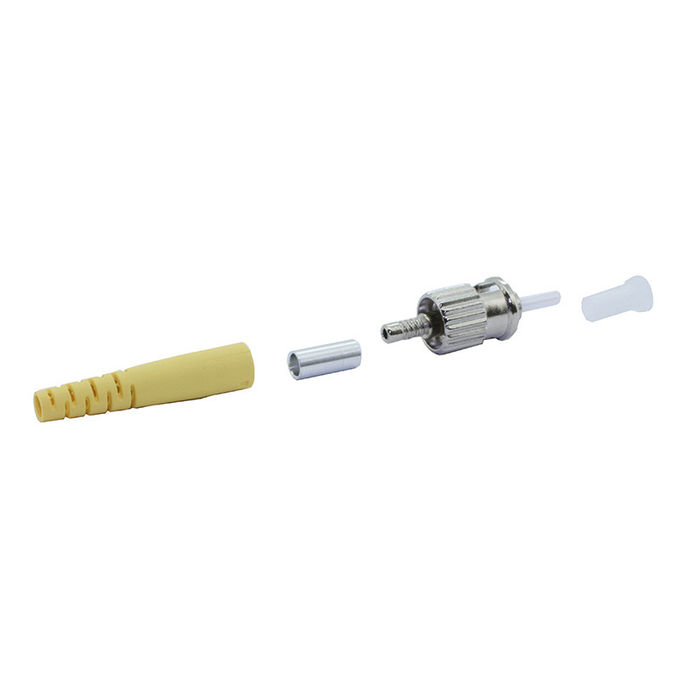

    singlemode simplex fiber optic cable st / upc connector long 2.0mm yellow boot


    Product Description

    Fiber optic connectors are unique. Fiber cables transmit pulses of light instead of electrical signals, so the terminations must be much more precise. Instead of merely allowing pins to make metal-to-metal contact, fiber optic connectors must align microscopic glass fibers perfectly in order to allow for communication. While there are many different types of fiber connectors, they share similar design characteristics. Simplex vs. duplex: Simplex means 1 connector per end while duplex means 2 connectors per end. There are three major components of a fiber connector: the ferrule, the connector body, and the coupling mechanism.

    Applications


    • Local Area Networks (LANs)
    • Data Processing Networks
    • Premise Installations
    • Instrumentation

    FEATURE


    • Bayonet style housing for easy termination
    • Epoxy and epoxy-less versions
    • High precision alignment
    • Low insertion Loss
    • High return Loss

    Parameter


    ItemSingle modeAPCMulti mode
    Insertion Loss≤0.3db
    Durability0.2db Max
    Operating temperature-40 ºC to +75 ºC
    Storage temperature-40 ºC to +75 ºC
    RemarkFerrule concentricity SM <1um; MM <4um
    Ferrule inner diameter tolerance : SM125+1/-0um; MM127+3/-0um
    Ferrule outer diameter tolerance : ±0.5um

    Single Core St / Upc Fiber Optic Connectors 2.0mm Yellow Boot , ROHS IS0 Standard
