    SC UPC Multimode Fiber Connectors Single Core For Fiber Optic Patch Cord

    Ask Lasest Price
    Brand Name : J&K
    Model Number : SC/UPC MM Connector
    Certification : IS09001-2008ROHS
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 3~5days
    • Product Details
    • Company Profile

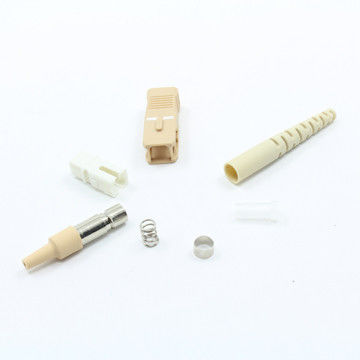

    SC UPC Multimode Fiber Connectors Single Core For Fiber Optic Patch Cord

    SC / UPC multimode Fiber Optic Connector for fiber optic Patch Cord


    Features


    • FC, SC, LC, MU, ST, MT-RJ, etc connector
    • Customized specifications welcomed.
    • Good exchange ability and good durability;
    • Available in fiber bunch, ribbon fan-out, pigtail available;
    • Meets ISO9001, ROHS and Bell core GR 326-core standards;


    Applications


    • Telecommunication
    • Computer networks
    • CATV networks
    • Premise installations


    Specifications



    Insertion loss
    SM≤0.20 dB
    MM≤0.25dB
    Return lossP C≥50 dB
    UPC≥55 dB
    APC≥65 dB
    Durability<0.20 dB typical change, 1000 mating
    Ferrule hole sizesSM: 125.0+1/-0umconcentricity:≤1.0um
    125.5+1/-0um≤1.0um
    126.0+1/-0um≤1.0um
    MM:125 umconcentricity:1≤3 um
    127 um≤3 um
    128 um≤3 um
    Operating temperature-40~80°C

    Ordering Information


    Step 1: Connector Type: FC,SC,LC,ST,MTRJ,MU,MPO,D4,DIN,SMA
    Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm
    Step 3: Ferrule End-face: PC, UPC, APC
    Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)
    Step 5: Boot color: Black, Blue, White, Red, Yellow, Green, Beige, Aqua
