Plastic E2000 PC Fiber Optic Connectors Simplex Single Mode For Testing Equipment

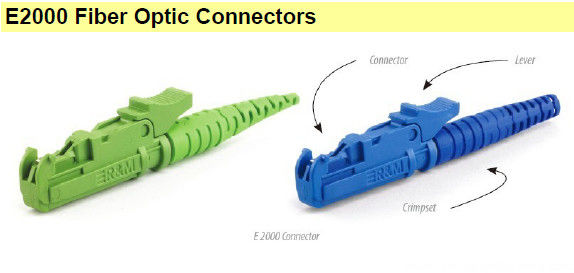

E2000 PC Simplex Singlemode Epoxy Connector with 0.9mm 2.0mm 3.0mm boot

Features

easy handling
short assembly times
easy dosing
no glueing pot time
Integrated protective cap protects ferrule from dust and rules out any laser light emissions
Integrated spring for a guaranteed closing of the protective cap
Colour and mechanical coding
Full ceramic ferrule
Excellent for high packing density
Special ferrule preform for short polishing

Applications

WANs,LANs,CATV
Testing equipment
Communication system
Telecommunication networks

Specifications

Parameter	Unit	FC,LC,SC				ST,MU			MTRJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310,1510				1310,1510			1310,1510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	ºC	-40~+75				-40~+75			-40~+75
Storage temperature	ºC	-40~+75				-40~+75			-40~+75
Cable diameter	mm	Φ3.0,Φ2.0,Φ0.9				Φ3.0,Φ2.0,Φ0.9			Φ3.0,Φ2.0,Φ0.9

* Ferrule size: 125.0um,125.3um, 125.5um 126.0um,127.0um,128.0um;
* Ferrule type(for APC):Stepped; Conical;
* Boot type:slotted boot,smooth boot;
* Boot size:0.9mm;2.0mm;3.0mm;
* Boot color:Beige,Black,Blue,Grey,Red,White,Yellow;
* Housing Color:Beige,Blue,Green,etc.

Plastic E2000 PC Fiber Optic Connectors Simplex Singlemode For Testing Equipment
