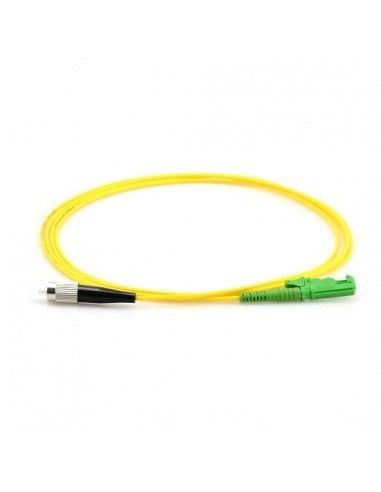

    FTTH Fiber Optic Patch Cord FC / UPC - E2000 / APC PVC / LSZH Material

    Ask Lasest Price
    Brand Name : J&K
    Model Number : FC / UPC - E2000 APC duplex
    Certification : ROSH
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 3~5days
    • Product Details
    • Company Profile

    FTTH Fiber Optic Patch Cord FC / UPC - E2000 / APC PVC / LSZH Material

    FC / UPC - E2000 / APC fiber optic patchcords fiber optical FTTH​


    Features


    • Excellent repeatability and changeability
    • Simplex and duplex available.
    • With ceramic fettules.
    • PVC&LSNH cable option

    Applications

    • Optical fiber communication system
    • Optical fiber test equipment
    • Optical fiber sensor
    • Industry and military application

    Specifications


    ParameterUnitFC, SC, LC/ Armoured fiber patch cordST, MUMT-RJ, MPOE2000
    SMMMSMMMSMMMSM
    PCUPCAPCPCPCUPCPCPCUPCPCPCAPC
    Insertion loss(typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.3≤0.2≤0.2≤0.3≤0.3
    Return lossdB≥45≥50≥60≥30≥45≥50≥30≥45≥50≥35≥55≥75
    Operating wavelengthnm1310, 15101310, 15101310, 15101310, 1510
    ExchangeabilitydB≤0.2≤0.2≤0.2≤0.2
    VibrationdB≤0.2≤0.2≤0.2≤0.2
    Operating temperature°C-40~75-40~75-40~75-40~75
    Storage temperature°C-45~85-45~85-45~85-45~85
    Cable diametermmΦ3.0, Φ2.0, Φ0.9Φ3.0, Φ2.0, Φ0.9Φ3.0, Φ2.0, Φ0.9

    φ3.0, φ2.0, φ0.9


    FC / UPC - E2000 / APC Single Mode Fiber Patch Cord fiber optical FTTH
