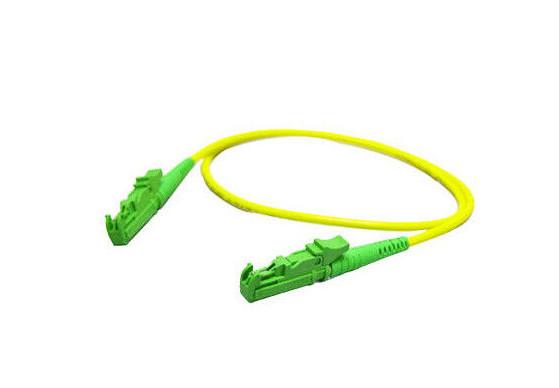

2.0mm Simplex Yellow Fiber Optic Patch Cord Single Mode G657A E2000 / APC

    Buy cheap 2.0mm Simplex Yellow Fiber Optic Patch Cord Single Mode G657A E2000 / APC from wholesalers

    Buy cheap 2.0mm Simplex Yellow Fiber Optic Patch Cord Single Mode G657A E2000 / APC from wholesalers
    • Buy cheap 2.0mm Simplex Yellow Fiber Optic Patch Cord Single Mode G657A E2000 / APC from wholesalers

    2.0mm Simplex Yellow Fiber Optic Patch Cord Single Mode G657A E2000 / APC

    Ask Lasest Price
    Brand Name : J&K
    Model Number : E2000/APC SM SX
    Certification : ROHS
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 3~5days
    • Product Details
    • Company Profile

    2.0mm Simplex Yellow Fiber Optic Patch Cord Single Mode G657A E2000 / APC

    2.0mm Simplex Singlemode G657A E2000 / APC fiber optic patch cord


    Features


    • Low insertion loss and back reflection loss
    • Ferrule end surface pre-domed
    • Excellent mechanical endurance
    • Good in repeatability
    • Good in exchange
    • Green production, CE, RoHS standard

    Applications


    • Telecommunications
    • CATV, LAN, MAN, WAN, test and measurement
    • Military industry
    • Medical

    Specifications


    Optical PerformanceSingle-modeMulti-mode
    Diameter(mm)0.9,2.0,3.0
    Fiber CableSimplex or Duplex available
    Insertion Loss(dB)≤0.3(PC)≤0.3(PC)
    Return Loss(dB)≥45(PC)≥35(PC)
    ≥50(UPC)
    ≥(APC)
    Exchangeability≤0.2dB
    Repeatability≤0.2dB
    Operating Temp.-20to+75℃
    Storage Temp.-40to+85℃

    Endface Geometry
    Parameter2.5mm ferrule1.25mm ferrule
    UPCAPCUPCAPC
    Radius of Curvature10-25mm5-12mm7-25mm5-12mm
    Apex Offset0-50um0-50um0-50um0-50um
    Fiber Height-100~50nm-100~100nm-100~50nm-100~100nm
    Angle--7.7-8.3 degree--7.7-8.3 degree
    3D-GeometryOem inexpensive products E2000 APC 2.0 fiber optic cable assembly manufacturers

    2.0mm Simplex Single Mode Fiber Patch Cord G657A E2000 / APC
