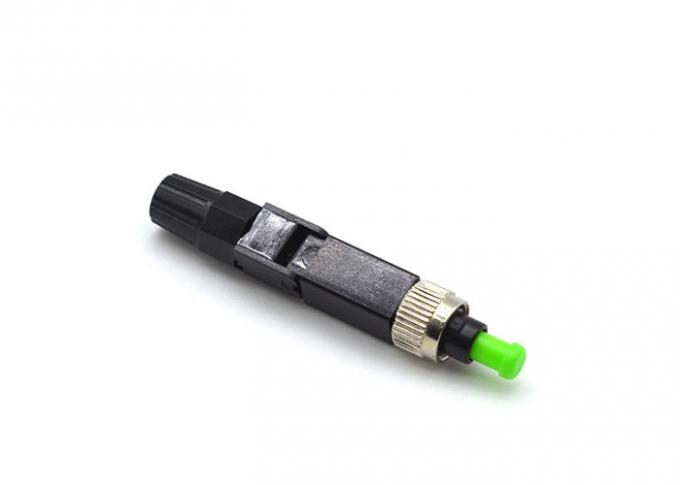

    Polished Fiber Optic Fc Connector , Fiber To The Home Quick Connect Fiber Optic Connectors

    Ask Lasest Price
    Brand Name : J&K
    Model Number : FC/APC fast connector
    Certification : CE Rohs
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 3~5days
    • Product Details
    • Company Profile

    Polished Fiber Optic Fc Connector , Fiber To The Home Quick Connect Fiber Optic Connectors

    FC / APC Field Assembly Fast Connectors Fiber Optic for Fiber To The Home

    FC APC Fast Connector/Field Assembly Connector manufactured by Carefiber Group Co., Limited has been factory-polished to eliminate the need of hand polishing in the field. The Fast Connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector. It is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination


    1. Specification:


    Pre-stubbed, factory-polished ferrule

    No epoxy required

    Precision mechanical alignment insures low loss

    3.0 mm, 2.0 mm and 900µm boot provided with each connector on the SC LC FC connectors;

    Meets TIA/EIA 568A performance requirements


    2. Features:


    Field installable high reliability connector

    RoHS compliant for all all fiber fast connectors material


    3. Application:


    Premise environments

    Connections at the desk for LAN environments

    Direct equipment termination

    FTTx applications

    Repair and replacement requirements

    Equipment test leads


    4. Technical Data


    ItemParameter
    Single-modeMulti-mode
    Insertion Loss≤0.3dB
    Durability0.2dB Max.
    Operating Temperature-40℃~+85℃
    Storage Temperature-40℃~+85℃

    FC / APC Field Assembly Fast Connectors Fiber Optic for Fiber To The Home
